プロダクト細部
起源の場所: 中国
ブランド名: Suntor
証明: CE
モデル番号: MB33
支払及び船積みの言葉
最小注文数量: 1セット
価格: contact us
パッケージの詳細: あなたの条件の正常なパッキングか基盤
受渡し時間: 12日
支払条件: T/T
供給の能力: 1000セット/日
動作周波数: |
1438MHz |
帯域幅: |
1/2/5/20MHz |
RF送信: |
2W |
NLOS間隔: |
300-500m |
暗号化モード: |
AES128/AES256 |
電源: |
DC25.2Vの取り外し可能な電池 |
動作周波数: |
1438MHz |
帯域幅: |
1/2/5/20MHz |
RF送信: |
2W |
NLOS間隔: |
300-500m |
暗号化モード: |
AES128/AES256 |
電源: |
DC25.2Vの取り外し可能な電池 |

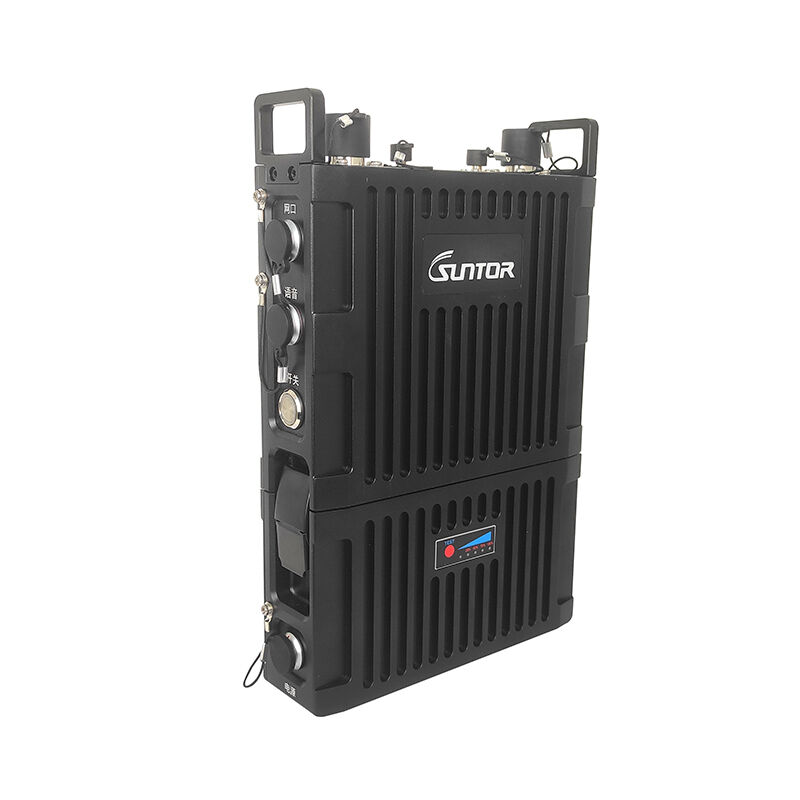

Individual soldier mesh network transmission device featuring compact size, lightweight design, and high-capacity removable batteries. Engineered for easy backpack mounting, enabling hands-free operation for tactical personnel.
Provides rapid network access with automatic multi-hop relay capability. Supports voice group calls, video backhaul, relay transmission, and multimedia communication services for individual soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration.
Integrated Beidou positioning functionality with WiFi coverage support. Compatible with WiFi-enabled intelligent terminals for diverse communication applications. System utilizes co-frequency networking and multi-hop relay, supporting various network topologies including point-to-point, point-to-multipoint, chain relay, mesh network, and hybrid configurations.
| Antenna Interface | N-K×2 |
| GPS Interface | SMA-K |
| WIFI Interface | SMA-K |
| Ethernet Interface | Aviation Interface, Supports 100M Network Interface |
| Audio Interface | Aviation Interface, Supports Hand Microphone or Earphone |
| HDMI Interface | Aviation Interface, Supports HDMI Input |
| Operating Frequency | 1428~1448MHz |
| Bandwidth | 5/10/20MHz, Flexible and Configurable |
| Transmission System | COFDM |
| Modulation Mode | BPSK/QPSK/16QAM/64QAM (Self-adaption) |
| Transmission Capacity | Peak Rate 90Mbps@20MHz |
| RF Transmitted Power | 2W |
| Receive Sensitivity | -97dBm@1MHz |
| Video Input | Supports IP Network Video Input, WIFI Video Access and HDMI Video Input |
| Networking Capability | ≥52 Nodes |
| Networking Hops | ＞10 Hops |
| Access Time | 5s After System Startup |
| Network Topology | Centerless Network, Star Network, Chain Network, Mesh Network, etc. |
| Encryption Mode | AES128/AES256 |
| Power Supply | DC 25.2V Removable Lithium Battery |
| Power Consumption | ≤40W |
| Dimensions | ≤275mm × 198mm ×52mm (including battery) |
| Equipment Weight | ≤3kg (including battery) |
| Protection Degree | IP66 |
| Working Temperature | -30℃～+65℃ |
Solider Manpack System Radio provides rapid wireless broadband communication for emergency response, anti-terrorism and anti-riot operations, covert reconnaissance, special operations, rescue and disaster relief, daily patrols, and other critical "peace and emergency" tactical missions.
