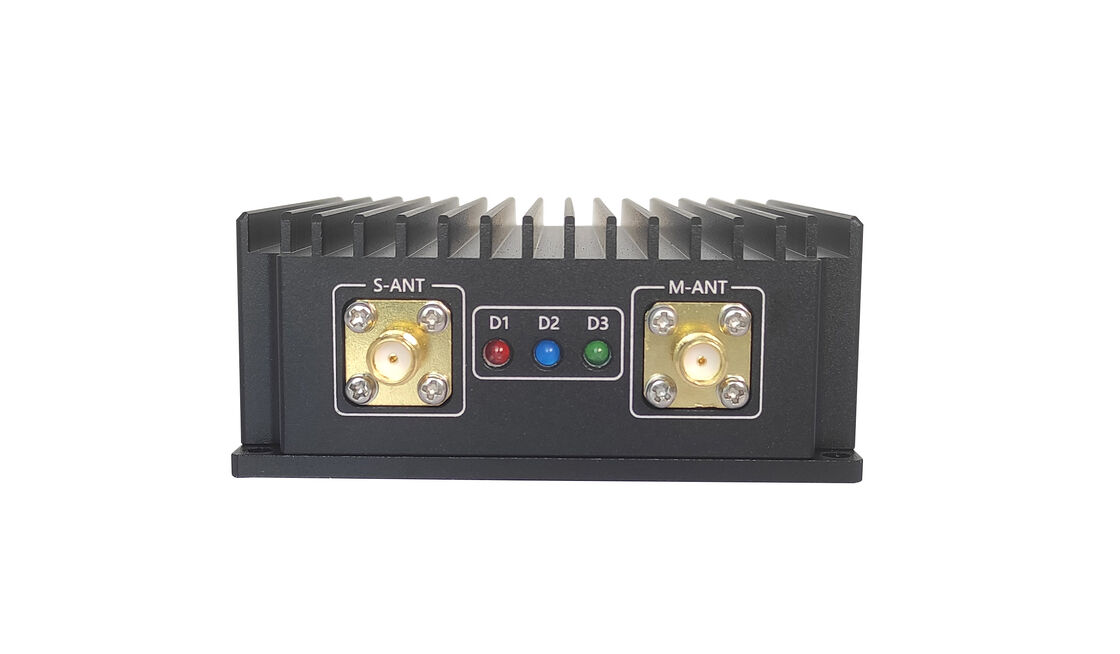

Lightweight UAV Video Link With 24Mbps, Dual Antenna & AES128 Encryption

Name: Lightweight UAV Video Link With 24Mbps, Dual Antenna & AES128 Encryption
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: CD20プロ
Price: 5,500.00 USD
Availability: InStock

プロダクト細部

起源の場所: 中国

ブランド名: Suntor

証明: CE

モデル番号: CD20プロ

支払及び船積みの言葉

最小注文数量: 1セット

パッケージの詳細: プラスチックボックス

受渡し時間: 7-15日

支払条件: T/T、ウェスタンユニオン

供給の能力: 5000/月

最もよい価格を得なさい

今連絡してください

仕様

記述

仕様

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Lightweight UAV video link, Dual antenna COFDM transmitter, AES128 encrypted video transmitter


周波数範囲:	1428～1448MHz（標準）	テクノロジー:	TDD-OFDM / MIMO / 1T2R
変調:	QPSK / 16QAM / 64QAM	帯域幅:	5MHz / 10MHz / 20MHz
データレート:	24Mbps @ 10MHz (ピーク)	RXの感受性:	-99dBm @ 5MHz
安全:	AES128暗号化	力:	DC12V～27V電源 ≤ 6W @ DC12V 消費電力(空気中)
重さ:	≤ 230g (空気)

周波数範囲:	1428～1448MHz（標準）
テクノロジー:	TDD-OFDM / MIMO / 1T2R
変調:	QPSK / 16QAM / 64QAM
帯域幅:	5MHz / 10MHz / 20MHz
データレート:	24Mbps @ 10MHz (ピーク)
RXの感受性:	-99dBm @ 5MHz
安全:	AES128暗号化
力:	DC12V～27V電源 ≤ 6W @ DC12V 消費電力(空気中)
重さ:	≤ 230g (空気)

記述

Lightweight UAV Video Link With 24Mbps, Dual Antenna & AES128 Encryption

Product Overview

The UAV video transmission device is specifically designed for unmanned intelligent platforms including UAVs, USVs, UGVs, and robot swarm communication networking. This advanced system integrates ultra-long-range wireless communication with multi-protocol interface adaptation, overcoming traditional transmission limitations. It enables 20km+ air-to-ground full-duplex real-time video, audio, telemetry, and remote control data interaction while supporting precise point-to-point control and distributed star-network communication in complex operational environments.

With its compact size, lightweight construction, quick installation, and simple operation, this solution is ideal for UAVs, USVs, UGVs, robots, and other applications requiring integrated image and data wireless transmission. Interface configurations can be customized to meet specific operational requirements.

Technical Specifications

Frequency Range	1428～1448MHz (Standard)
Bandwidth	5MHz / 10MHz / 20MHz
Modulation	QPSK / 16QAM / 64QAM
Transmission Distance	Up to 20km Air-to-Ground
Technology	TDD-OFDM, MIMO, 1T2R
Data Rate	24Mbps @ 10MHz (Peak)
Frequency Options	1.4GHz / 2.4GHz / 800MHz
Rx Sensitivity	-99dBm @ 5MHz
Security	AES128 Encryption
Antenna	Dual SMA Antennas
Weight	230g (Air Unit)
Power Supply	DC12V～27V Power Supply ≤ 6W @ DC12V Power Consumption (Air)

Professional Applications

The CD20Pro Drone Video Transmission Radio is engineered for diverse professional UAV applications across multiple industries:

Aerial Filming & Photography - Provides smooth HD video feed for professional cinematography and live streaming applications
Public Safety & Search-and-Rescue - Delivers reliable long-range communication capabilities for critical missions and emergency response
Industrial Inspection - Enables real-time HD video transmission for infrastructure, utility, and pipeline monitoring operations
Military & Tactical Operations - Offers encrypted, interference-resistant transmission for secure environments and defense applications

Package Contents

The CD15 package includes all essential components for immediate deployment:

Omni Antennas for Air Unit × 2
Omni Antennas for Ground Unit × 2
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
