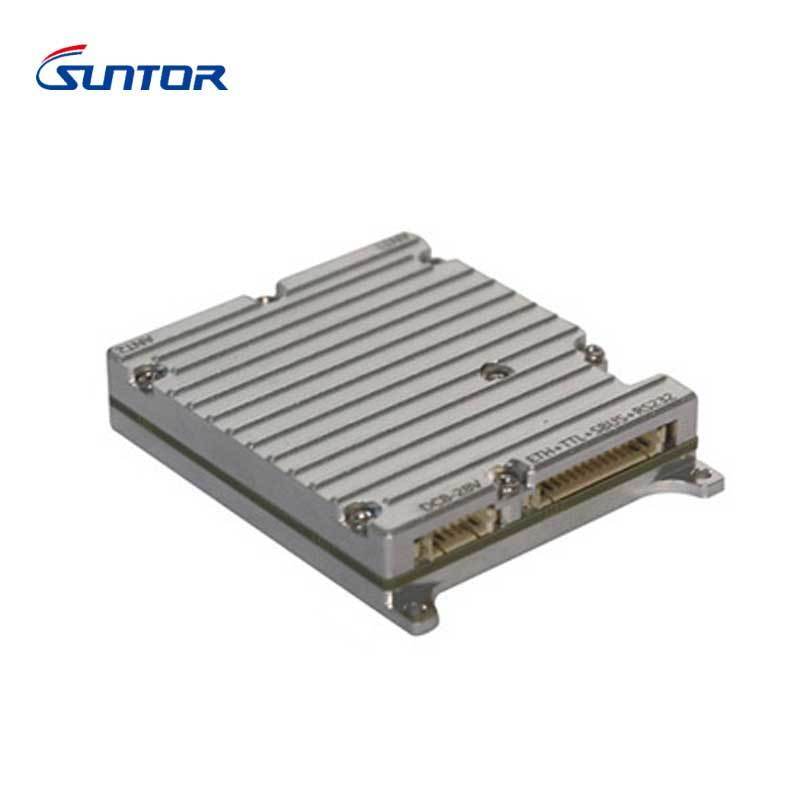

MD30Pro Drone Mesh Radio with AES Encryption & 25Mbps Data Rate

Name: MD30Pro Drone Mesh Radio with AES Encryption & 25Mbps Data Rate
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: MD30プロ
Price: 5,500.00 USD
Availability: InStock

プロダクト細部

起源の場所: 深セン

ブランド名: Suntor

モデル番号: MD30プロ

支払及び船積みの言葉

最もよい価格を得なさい

今連絡してください

仕様

記述

仕様

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                      MD30Pro drone mesh radio, AES encryption mesh radio, 25Mbps data rate drone radio


周波数範囲:	1300~1500MHz	トランスミッター電源:	1W(0.5W×2)
伝送システム:	COFDM	データレート:	25Mbps@10MHz (ピーク)
ビデオ入力:	ETH (オプションのHDMI/SDI)	ネットワーキングホップ:	1 / 2 / 3 / 4 / 10 ホップ

周波数範囲:	1300~1500MHz
トランスミッター電源:	1W(0.5W×2)
伝送システム:	COFDM
データレート:	25Mbps@10MHz (ピーク)
ビデオ入力:	ETH (オプションのHDMI/SDI)
ネットワーキングホップ:	1 / 2 / 3 / 4 / 10 ホップ

記述

MD30Pro Drone Mesh Radio with AES Encryption & 25Mbps Data Rate

The MD30Pro Drone Mesh Radio is a compact, lightweight, and high-performance IP Mesh networking device designed for UAV communication, tactical operations, emergency response, and long-range wireless data transmission. Built with advanced COFDM modulation, AES128/256 encryption, and frequency hopping technology, the MD30Pro delivers stable broadband connectivity in complex environments.

Supporting up to 25Mbps data rate, 30KM air-to-ground transmission, and multi-node self-healing mesh networking, the MD30Pro provides reliable real-time video, telemetry, and IP data transmission for mission-critical applications.

Key Features

Long Range UAV Mesh Communication - Supports up to 30KM air-to-ground wireless transmission distance for stable communication links
High-Speed Broadband Data Transmission - Peak data rate of 25Mbps supports real-time HD video streaming and IP data communication
Advanced IP Mesh Networking - Ad-hoc mesh networking with over 64 IP Mesh nodes that automatically connect and self-organize
AES128/256 Encryption Protection - Secure wireless communication for sensitive video and data transmission
FHSS Frequency Hopping Technology - IFS/FHSS frequency hopping improves anti-interference capability and reliability
Compact and Lightweight Design - Weighing less than 50g, optimized for UAV payload integration

Technical Specifications

Specification	Details
Product Model	MD30Pro
Transmission Technology	COFDM
Networking Type	IP Mesh / Ad-Hoc Network
Frequency Range	1350~1450MHz (Customizable)
Data Rate	Up to 25Mbps
RF Power	0.5W × 2
Transmission Distance	Up to 30KM Air-to-Ground
Encryption	AES128 / AES256
Modulation	BPSK/QPSK/16QAM/64QAM
Network Nodes	More Than 64 Nodes
Networking Hops	Up to 10 Hops
Startup Time	5 Seconds
Power Consumption	≤10W Peak
Voltage Input	DC 8~28V
Dimensions	≤66 × 48 × 11.5mm
Weight	≤50g
Operating Temperature	-40°C ~ +55°C

Applications

UAV Video Transmission
Emergency Rescue Communication
Tactical Surveillance Systems
Public Safety Operations
Border Security
Firefighting Communication
Industrial Inspection Drones
Smart City Wireless Networking
Tactical and Defense Communication
Unmanned Ground Vehicle (UGV) Communication

Why Choose MD30Pro UAV Mesh Radio?

The MD30Pro combines long-range transmission, secure mesh networking, and high-speed broadband communication in an ultra-compact form factor. Its advanced self-healing IP Mesh architecture ensures stable communication even in dynamic and infrastructure-less environments.

Whether deployed for emergency response, drone video transmission, or tactical communication, the MD30Pro provides reliable and secure wireless connectivity for professional mission-critical applications.
